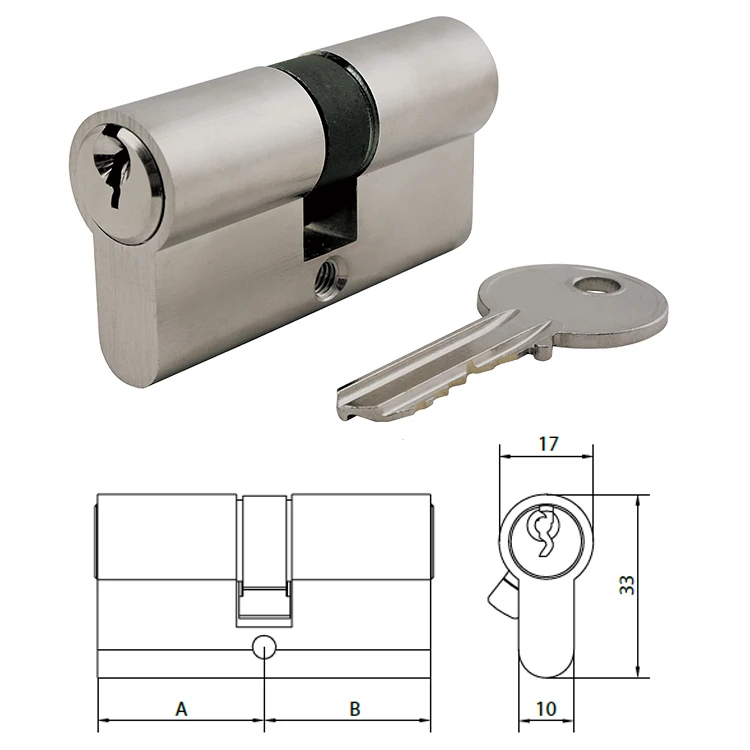

High security euro cylinder with master key system is manageable euro cylinder with keying ability suitable for commercial or residential application with specific access requirement. Keyed operation from either side(inside or outside).

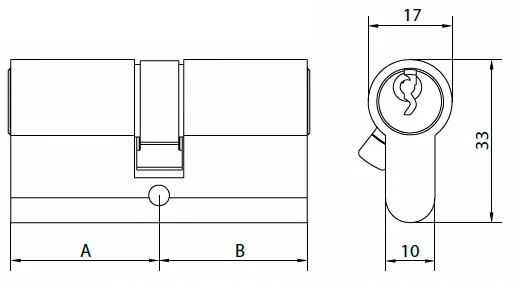

Available Models|Size
 | Item No. | A (30-60mm) | B (30-60mm) |
| ECS3030 | 30 | 30 | |
| ECS3035 | 30 | 35 | |
| ECS3535 | 35 | 35 | |
| ECS4040 | 40 | 40 | |
1. Dimensions in MM 2. Other sizes unlisted can be customized | |||
Specifications and Features
- Standard euro profile dimension according to DIN18252
- Solid brass material
- 5 or 6 pins constructions
- Master key Euro Profile DIN18252 mortice lock cylinder can be customized with various lengths available for different door thickness
- Symmetrical and asymmetrical variants are available to work with different lock installation positions
- Optional anti-drill pins and anti-pick pins
- Enhanced attack resistance provided by UNITY security escutcheons
- Master keying service available upon request

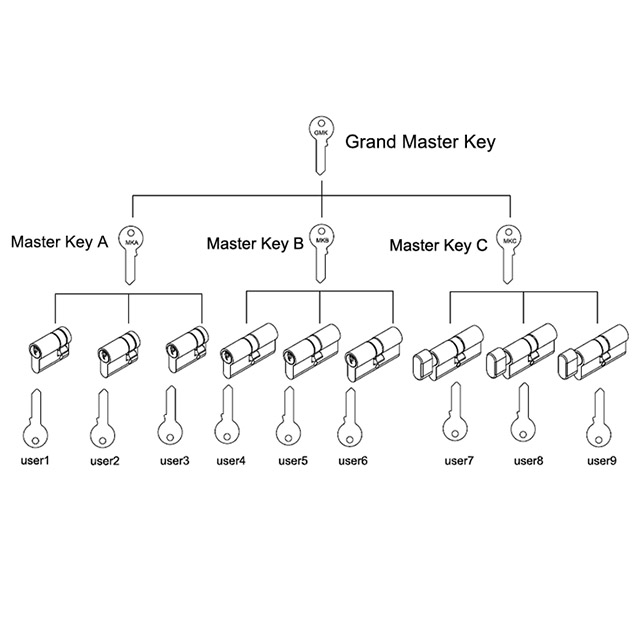

Master Key System
